Curved Glass for Architectural & Facade Projects
High-precision curved tempered glass produced with our North Glass furnace for modern building design. We deliver stable curvature accuracy for complex facade projects โ from single curved panels to large-scale curtain wall systems.
Why Choose Us as Your Curved Glass Manufacturer
North Glass Furnace
Equipped with advanced North Glass curved tempering furnace โ industry-leading precision for consistent curvature control
High Curvature Accuracy
Strict R-value tolerance control ensuring every panel matches your drawings within specified deviation
Large Size Capability
Curved panels up to 6,800mm arc length with heights up to 24,000mm depending on radius
Multiple Glass Types
Curved tempered, curved laminated (PVB/SGP), curved IGU, and curved Low-E โ all available
Complex Project Experience
24+ years handling curved facade projects for airports, malls, hotels, and landmark buildings
Engineering Support
Technical evaluation of your drawings, R-value feasibility check, and mock-up panel production
Stable Production & Delivery
Consistent quality across large batches with clear production timeline and milestone updates

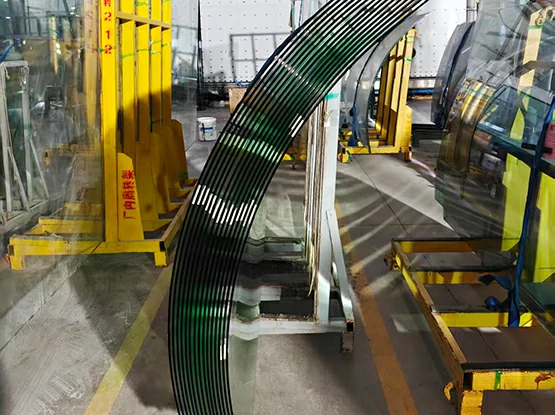

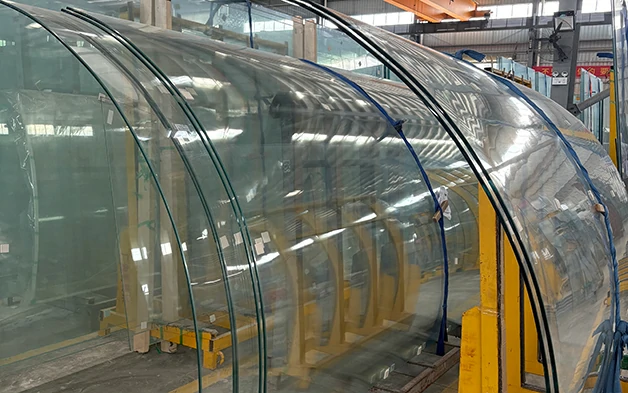

Our Curved Glass Workshop

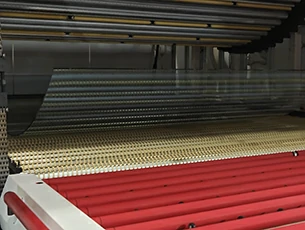

Equipped with North Glass Curved Tempering Furnace
- High precision bending control with programmable curvature profiles
- Consistent curvature across every panel in the batch
- Suitable for large architectural curved glass projects
Looking for Custom Curved Glass?
Every curved glass project is unique โ we customize to your exact specifications
Glass Type
Curved tempered, curved laminated (PVB/SGP), curved IGU, curved Low-E coated
Thickness
4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm โ single or multi-layer
Radius (R Value)
Custom radius from R200mm to R121,000mm+ โ tell us your design
Arc Length & Height
Up to 6,800mm arc length with heights up to 24,000mm depending on radius
Coating
Low-E (single/double/triple silver), reflective, self-cleaning nano coating
Edge Processing
Flat polished, pencil, beveled, seamed โ precision edge work on curved panels
How We Ensure Curved Glass Quality
Curvature Accuracy Inspection
Every panel measured against the target R-value using precision templates and laser scanning
Optical Distortion Control
Reflection and transmission distortion checked to minimize visual defects on facade installation
Surface Quality Inspection
Full surface scan for scratches, roller marks, and quench marks โ zero tolerance for critical areas
Tempering Stress Test
Polariscope verification of uniform stress distribution across the curved surface
Lamination Bond Test
Adhesion and impact testing for curved laminated glass per EN ISO 12543 standards
Dimensional Verification
Arc length, height, thickness, edge quality, and hole positions verified before packing
Curved Glass Uses

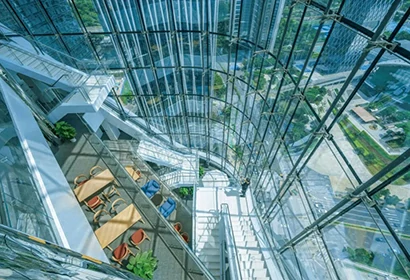

Curtain Wall Facades

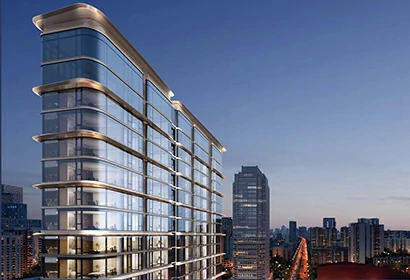

Commercial Buildings

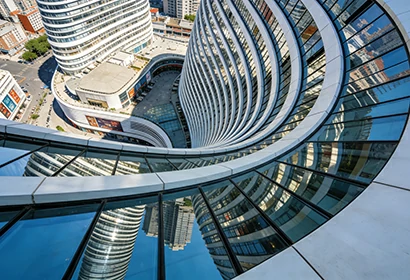

Shopping Malls

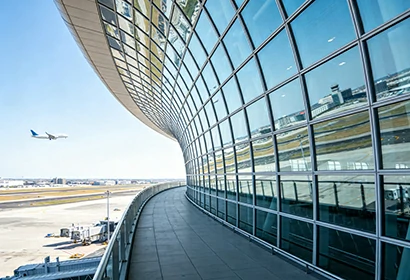

Airports & Public Buildings

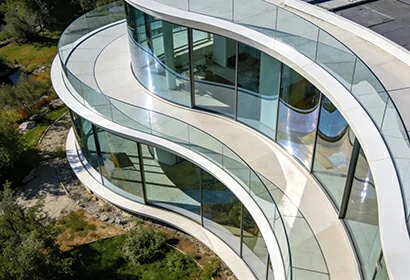

Luxury Hotels & Villas

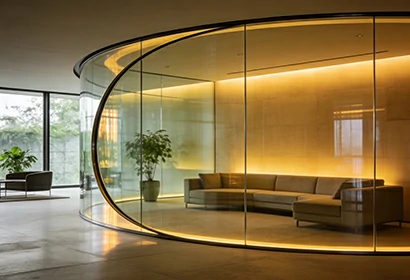

Interior & Decorative
Projects Using Our Curved Glass
Simple 5-Step Process
Inquiry & Drawings
Technical Evaluation
Quotation
Production
Inspection & Shipping
What Is Curved Glass?
Curved glass (also called bent glass) is produced by heating flat glass to a high temperature (approximately 600โ700ยฐC) and bending it into a specific radius using specialized furnaces with precision molds. The glass can then be tempered during the cooling process for added strength.
Curved glass is widely used in modern architecture for its ability to create smooth, continuous facade lines, panoramic views, and distinctive building identities. It can be further processed into laminated curved glass, curved IGU, and curved Low-E glass for enhanced performance.
Benefits of Curved Glass
Modern Aesthetics
Creates smooth, flowing architectural lines impossible with flat glass
Continuous Facade Design
Seamless curved surfaces for panoramic and wrap-around glazing
Enhanced Visual Impact
High-end appearance that defines landmark and premium projects
Design Flexibility
Any radius, any size โ single curve, S-curve, and complex profiles
Aerodynamic Performance
Curved forms reduce wind load and improve building energy dynamics
Safety & Strength
Curved tempering provides 4-5x strength โ combine with lamination for ultimate safety
IGU Compatible
Curved insulated glass units for thermal and acoustic performance on curved facades
Curved Glass Specifications
Dimension Reference (Customization Available)
| Arc Length (mm) | Glass Height (mm) | Radius (R) mm โฅ |
|---|---|---|
| 400 | 2,400 | 200 |
| 1,200 | 2,400 | 450 |
| 1,500 | 3,300 | 650 |
| 1,650 | 24,000 | 500 |
| 1,700 | 2,400 | 800 |
| 2,400 | 5,000 | 800 |
| 2,400 | 5,000 | 850 |
| 2,440 | 6,000 | 1,200 |
| 2,500 | 3,200 | 900 |
| 2,500 | 3,300 | 900 |
| 3,300 | 5,000 | 1,600 |
| 3,600 | 3,300 | 1,800 |
| 3,660 | 18,000 | 3,000 |
| 5,000 | 3,300 | 6,200 |
| 22,000 | 3,660 | 121,000 |
Curved Glass defines modern architecture.
Flat glass builds structure โ curved glass creates visual impact.
FAQs About Curved Glass
What is the minimum radius for curved glass?
The minimum radius depends on glass thickness and type. For standard curved tempered glass, the minimum R-value starts from approximately R200mm for smaller panels. Thicker glass and laminated configurations require larger radii. Send us your drawings and our engineering team will confirm feasibility.
Can curved glass be laminated?
Yes. Curved laminated glass is widely used for safety-critical applications such as overhead glazing, balustrades, and hurricane-rated facades. We produce curved laminated glass with PVB or SGP interlayer, and can combine it with Low-E coating for energy performance.
Is curved glass tempered?
Most architectural curved glass is tempered during the bending process โ the glass is heated, bent to shape, and then rapidly cooled. This provides 4-5x the strength of annealed glass. For applications requiring post-breakage barrier, we recommend curved tempered + laminated combination.
What is the maximum size for curved glass?
Our North Glass furnace can produce curved panels with arc lengths up to 6,800mm. The maximum glass height depends on the radius โ for example, at R3,000mm we can produce panels up to 18,000mm height. Please provide your specific dimensions for confirmation.
Does curved glass have optical distortion?
Slight optical distortion (such as roller wave and quench marks) is inherent to curved tempered glass and is within industry-accepted standards. Our North Glass furnace minimizes these effects through advanced temperature control. For critical visual areas, we can produce test panels for your approval before bulk production.
