Jumbo Glass up to 18m for Curtain Wall Projects
Large-size architectural glass panels for modern landmark buildings. Our purpose-built jumbo processing lines handle cutting, tempering, laminating, and insulating at extraordinary dimensions โ a capability only a few manufacturers worldwide can truly deliver.
Why Choose Our Jumbo Glass
Up to 18m ร 3.3m
One of the few manufacturers capable of processing single glass panels at this extraordinary size
Stable Quality at Scale
Consistent quality across large batches โ ISO 9001 certified with full panel-by-panel inspection
Oversized Glass Handling
Experienced team with specialized equipment for moving, processing, and packing jumbo panels safely
Breakage-Proof Packaging
Reinforced wooden crates and steel racks designed specifically for oversized glass sea freight
Reliable International Delivery
Exported jumbo glass to 80+ countries with specialized container loading and logistics partners
Engineering Support
Technical evaluation, drawing review, and mock-up production before committing to full-scale orders
24+ Years Large Project Experience
Proven track record supplying jumbo glass for airports, commercial towers, and landmark facades
Maximum Size & Capability
ร 3,300mm | Up to 22mm thickness
How Big Is 18m?
That's taller than a 5-story building โ in a single glass panel.
Production & Equipment for Jumbo Glass

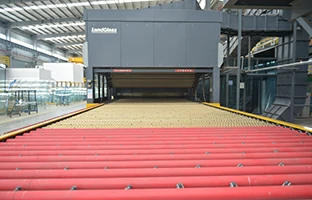

Jumbo Tempering Furnace
Max: 18,000 ร 3,300mm โ flat tempered jumbo panels

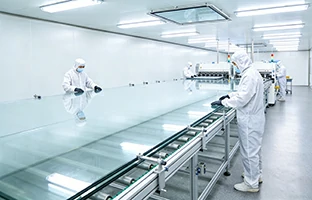

Jumbo Laminated Line
Max: 18,000 ร 3,300mm โ PVB/SGP multi-layer lamination

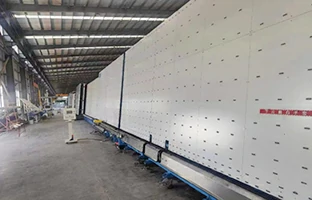

IGU Production Line
Fully automatic โ double/triple glazing for jumbo panels

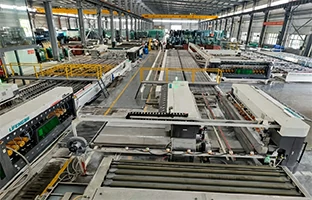

CNC Cutting & Edge Processing
Max: 16,000 ร 3,800mm โ precision cut and edge workHandling & Delivery for Oversized Glass
The biggest risk with jumbo glass is not production โ it's logistics. Here's how we solve it.

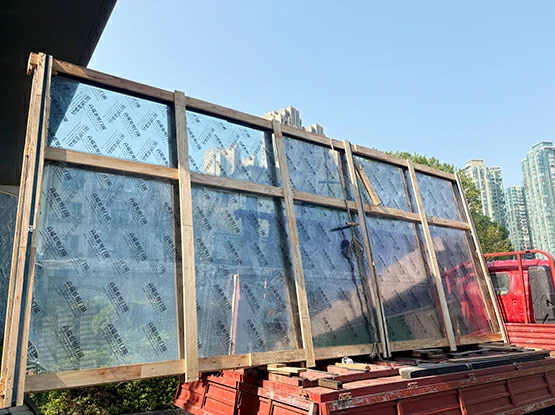

Reinforced Packaging
Custom-built wooden crates and steel racks with multi-point foam padding designed for oversized panels
Special Container Loading
Flat-rack and open-top container solutions with experienced loading team for jumbo glass
Professional Handling Team
Trained crew using suction lifters and overhead cranes โ every panel handled with precision
Low Breakage Rate
Less than 0.3% breakage rate across all jumbo glass export shipments โ industry-leading safety
Global Logistics Partners
Reliable freight network covering Middle East, SE Asia, Europe, Americas โ door-to-port delivery
Insurance & Documentation
Full cargo insurance available, with packing list, inspection reports, and shipping documentation
Looking for Custom Jumbo Glass?
Size
Any dimension up to 18,000 ร 3,300mm โ tell us your project size
Thickness
Single pane up to 22mm; multi-layer laminated and IGU also available
Glass Type
Tempered, laminated (PVB/SGP), IGU, Low-E, reflective โ any combination
Coating
Single/double/triple silver Low-E, solar control, self-cleaning coatings
Edge Processing
Flat polished, pencil, beveled, seamed โ precision edge work on large panels
Application
Curtain wall, facade, skylight, panoramic window โ we match the configuration to your use
Quality Control for Jumbo Glass
The larger the glass, the harder the quality control โ here's how we ensure every panel is perfect
Full Surface Inspection
Automated and manual scan for scratches, inclusions, roller marks on every jumbo panel
Tempering Stress Test
Polariscope verification of uniform stress distribution across the entire large surface area
Flatness Measurement
Laser-calibrated flatness check โ critical for large panels to ensure clean installation
Lamination Bond Test
Adhesion, boil, and impact tests for jumbo laminated panels per EN ISO 12543
IGU Seal Performance
Dew point and gas concentration testing for jumbo IGU โ ensuring long-term seal integrity
Pre-Shipment Verification
Final dimensional check, visual inspection, and packing quality audit before container loading
Jumbo Glass Uses

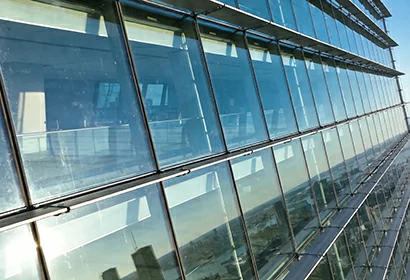

Curtain Wall Facades

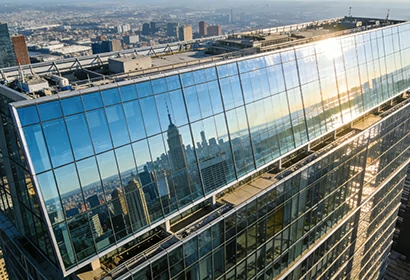

Commercial Buildings

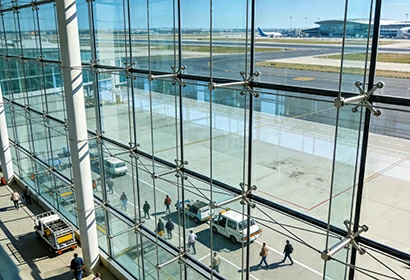

Airports & Transport Hubs

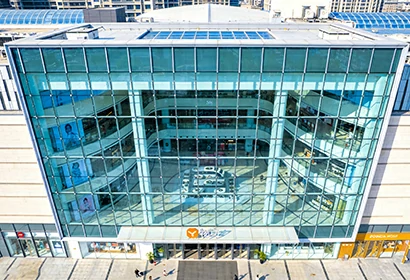

Shopping Malls

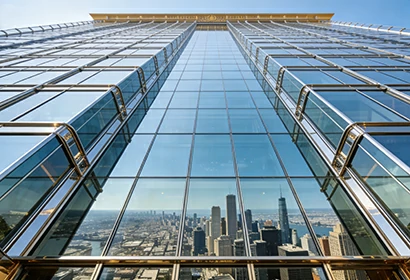

Luxury Hotels & Villas

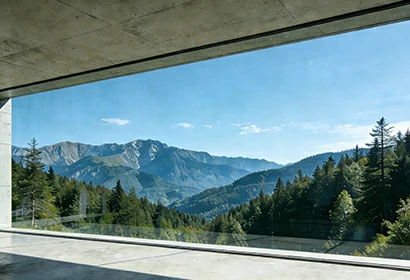

Panoramic Viewing Glass

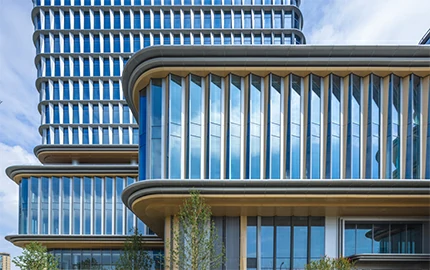

Projects Using Our Jumbo Glass
Simple 5-Step Process
Inquiry & Drawings
Technical Evaluation
Quotation
Production
Inspection & Shipping
What Is Jumbo Glass?
Jumbo glass refers to oversized glass panels that exceed standard manufacturing dimensions โ typically panels longer than 6 meters or wider than 2.5 meters. These panels are used in modern architecture to create seamless, high-transparency facades with minimal joints.
Producing jumbo glass requires specialized furnaces, handling equipment, and logistics capability that only a limited number of manufacturers possess. LIYUAN Glass operates purpose-built jumbo processing lines capable of tempering, laminating, and insulating panels up to 18,000 ร 3,300mm.
Benefits of Jumbo Glass
Fewer Joints
Larger panels mean fewer mullions and joints โ cleaner, more seamless facade appearance
Higher Transparency
Maximum glass-to-frame ratio for unobstructed views and natural light
Visual Continuity
Smooth, continuous surface across large facade areas for modern design impact
Premium Appearance
High-end look that defines landmark and iconic architecture worldwide
Enhanced Building Value
Jumbo glass facades significantly increase perceived property and project value
Full System Compatibility
Available as tempered, laminated, IGU, Low-E โ meeting all performance requirements
Jumbo Glass vs Standard Glass
| Property | Jumbo Glass | Standard Glass |
|---|---|---|
| Max Size | Up to 18,000 ร 3,300mm | Typically โค 3,600 ร 2,400mm |
| Facade Appearance | Seamless โ minimal joints | More joints and mullions visible |
| Applications | Landmark projects, airports, towers | Regular buildings, residential |
| Manufacturing Complexity | High โ requires specialized equipment | Standard processing |
| Handling & Logistics | Specialized โ oversized packaging & loading | Standard crate packing |
| Cost | Higher โ premium capability | Standard market pricing |
| Visual Impact | Maximum โ defines modern architecture | Functional but conventional |
Jumbo Glass creates iconic architecture.
Standard glass builds structure โ jumbo glass defines visual impact.
FAQs About Jumbo Glass
What is the maximum size of jumbo glass you can produce?
Our jumbo processing lines can handle single panels up to 18,000 ร 3,300mm (18m ร 3.3m) with thickness up to 22mm. This applies to tempered, laminated, and IGU configurations. For specific dimensions, please send your drawings for feasibility confirmation.
Is jumbo glass safe?
Yes. Jumbo glass is typically produced as tempered glass (4-5x stronger than annealed) or tempered + laminated combination for maximum safety. For overhead and safety-critical applications, we recommend tempered laminated jumbo glass which maintains its barrier even when broken.
How is jumbo glass transported safely?
We use reinforced wooden crates and custom steel racks with multi-point foam padding, specifically designed for oversized panels. Flat-rack or open-top containers are used for shipping. Our experienced loading team and specialized handling equipment ensure a breakage rate below 0.3%.
What is the typical lead time for jumbo glass?
Lead time depends on panel size, glass type, and order quantity. Typical production time is 15-25 working days for tempered jumbo glass, and 20-30 days for laminated or IGU configurations. We provide a detailed production schedule with milestone updates.
Can jumbo glass be insulated (IGU)?
Yes. We produce jumbo insulated glass units with double or triple glazing, Low-E coating, and argon gas fill. Jumbo IGU is widely used for energy-efficient curtain wall facades on large commercial and institutional buildings.
Client Testimonials
"LIYUAN delivered 2,000ใก of jumbo tempered Low-E panels for our commercial tower โ the largest being 12m ร 3.3m. Zero breakage on delivery and the quality was consistent across all panels. Very impressive capability."
"We needed oversized IGU for our hotel lobby โ 8m ร 3m panels with triple silver Low-E. LIYUAN handled everything from technical evaluation to safe delivery. The packaging was outstanding."
"Finding a manufacturer that can truly deliver 18m panels is rare. LIYUAN not only has the furnace but also the handling expertise and packaging solutions. They are our go-to supplier for jumbo projects in the Middle East."
Request a Quote for Jumbo Glass
Send us your drawings and specifications โ our engineering team will evaluate and respond within 24 hours
