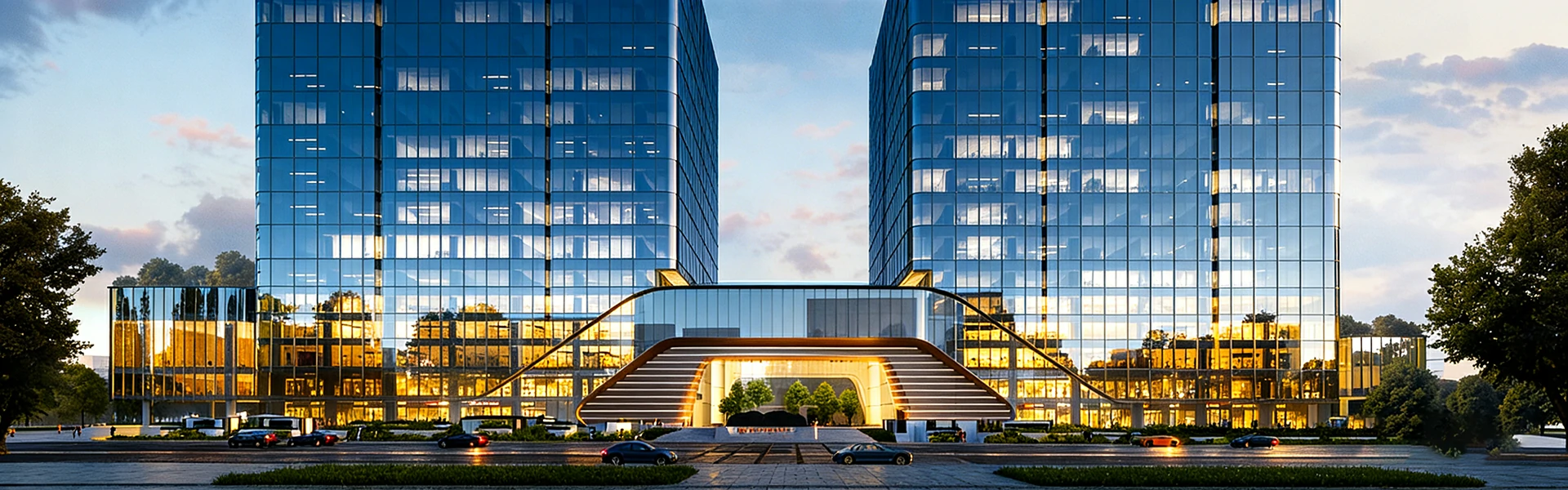

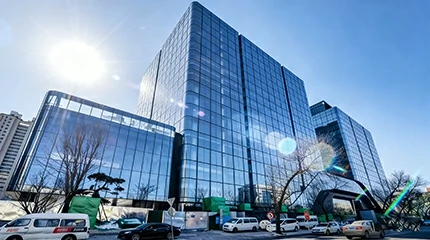

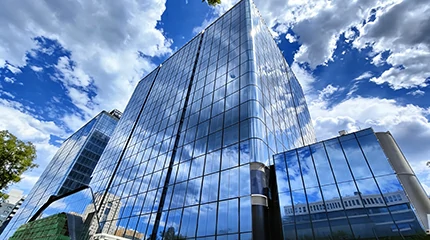

Lijing Smart Land Center, Beijing
190,000ใก landmark complex with 12.2m all-glass curtain wall achieving "zero visual boundary" facade design
Get Quote for Similar ProjectLijing Smart Land Center, Beijing, strategically located between Zhongguancun and Financial Street, is a landmark commercial complex integrating technology, finance, and premium office spaces. With a total gross floor area of approximately 190,000 square meters, the project features twin towers rising 79 meters high, combining office, retail, and lifestyle functions in a modern urban environment.
High-Performance Unitized Curtain Wall
The project adopts a high-performance unitized curtain wall system, making extensive use of advanced curtain wall glass solutions. The facade primarily utilizes double laminated insulating glass units (IGUs) with double silver Low-E coatings, heat-strengthened ultra clear glass, argon gas filling, and warm-edge spacers. This configuration significantly improves energy efficiency, thermal insulation, and acoustic performance, while maintaining excellent transparency โ key requirements for modern commercial buildings.
12.2m All-Glass Curtain Wall โ Zero Visual Boundary

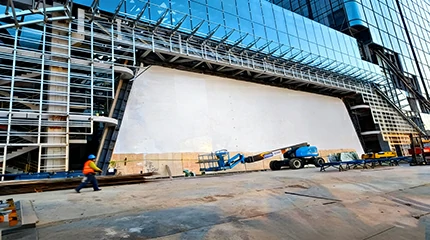

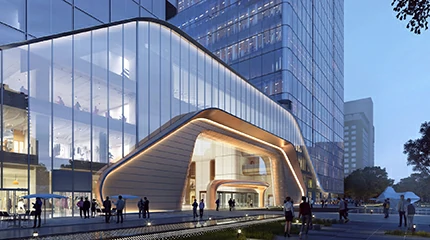

One of the most remarkable features of the project is the 12.2-meter-high all-glass curtain wall system at the main entrances, achieving a "zero visual boundary" facade design. The central lobby, with a height of 28 meters and an area of 2,800 square meters, incorporates large-scale laminated glass and Low-E insulating glass systems to maximize natural daylight and create a seamless indoor-outdoor visual connection. These oversized and multi-layer glazing applications represent cutting-edge facade engineering and require exceptional precision in glass fabrication and installation.
LIYUAN Glass Contribution
As a professional glass manufacturer in China, LIYUAN Glass played a key role in this project by supplying high-quality Low-E insulating glass, laminated glass, and customized facade glazing solutions. All glass products were manufactured using premium raw materials and processed through advanced tempering, lamination, and IGU production lines, ensuring durability, safety, and long-term performance in complex curtain wall systems.
From standard unitized facades to ultra-large all-glass structures, Lijing Smart Land Center showcases the integration of architectural innovation and high-performance building glass solutions.
Technical Details
Why This Configuration?
- Double silver Low-E coating maximizes solar control while maintaining high visible light transmittance
- Heat-strengthened processing minimizes optical distortion for premium facade appearance
- Argon gas + warm-edge spacers achieve superior U-value for energy-efficient commercial operation
- Laminated construction ensures safety for oversized panels in high-traffic entrance areas
- Ultra clear glass delivers true color rendering โ essential for landmark commercial aesthetics
Curtain Wall System
The project adopts a high-performance unitized curtain wall system with double laminated IGUs featuring double silver Low-E coatings. The most striking element is the 12.2-meter-high all-glass curtain wall at the main entrances, achieving a "zero visual boundary" facade. The central lobby โ 28 meters high and 2,800 square meters โ uses large-scale laminated glass and Low-E IGUs to maximize natural daylight and create seamless indoor-outdoor visual connection.
- Unitized curtain wall system with double laminated Low-E IGU
- 12.2m-high all-glass curtain wall โ "zero visual boundary" design
- 28m-high central lobby with 2,800ใก of glazed facade
- Heat-strengthened ultra clear glass + argon + warm-edge spacers
- Oversized multi-layer glazing requiring exceptional fabrication precision
Challenges & Solutions
Project Challenges
- Twin-tower complex totaling 190,000ใก demanding large-volume consistent quality supply
- 12.2m all-glass curtain wall requiring oversized laminated IGU with extreme precision
- 28m-high lobby with 2,800ใก glazing โ structural glass at extraordinary scale
- Double laminated IGU with double silver Low-E โ complex multi-layer fabrication
- Premium commercial project between Zhongguancun and Financial Street โ zero tolerance for visual defects
LIYUAN Solutions
- Advanced tempering, lamination, and IGU production lines ensuring consistent quality across large volumes
- Precision manufacturing of oversized panels with strict dimensional and optical quality control
- Customized facade glazing solutions engineered for structural performance at 12.2m and 28m scales
- Multi-layer IGU assembly with double silver Low-E, argon fill, and warm-edge โ fully integrated processing
- Premium raw material selection with heat-strengthened ultra clear glass for flawless facade appearance
Key Numbers
Delivery & Quality Assurance
Premium Manufacturing
All glass processed through advanced tempering, lamination, and IGU lines with premium raw materials
Precision Fabrication
Oversized panels manufactured with exceptional dimensional and optical quality for landmark facade
Customized Solutions
Tailored glazing configurations for unitized curtain wall, all-glass entrance, and lobby systems
Reliable Supply
Consistent delivery coordinated across twin-tower construction phases โ on time, on spec
